Baldwin B1428

Share this:
Google+

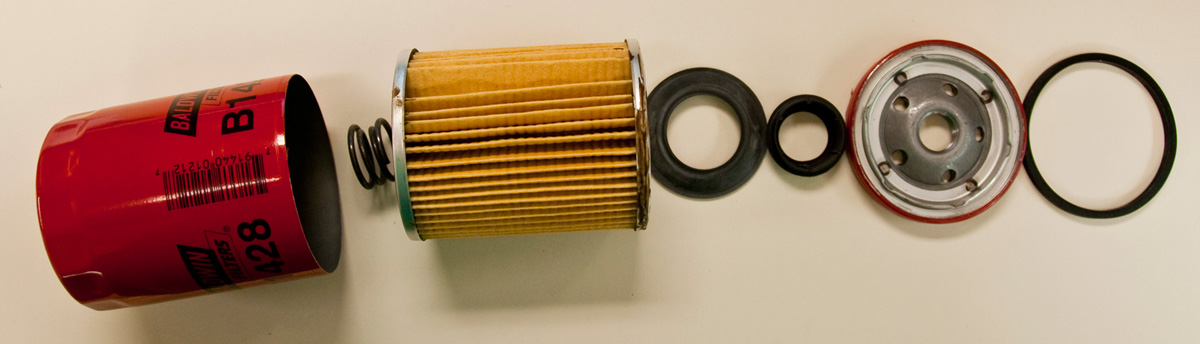

exploded

Purchase Price - $8.82

Purchased From - Amazon.com

Box

Total Inlet Opening Area (sq mm) - 229.82

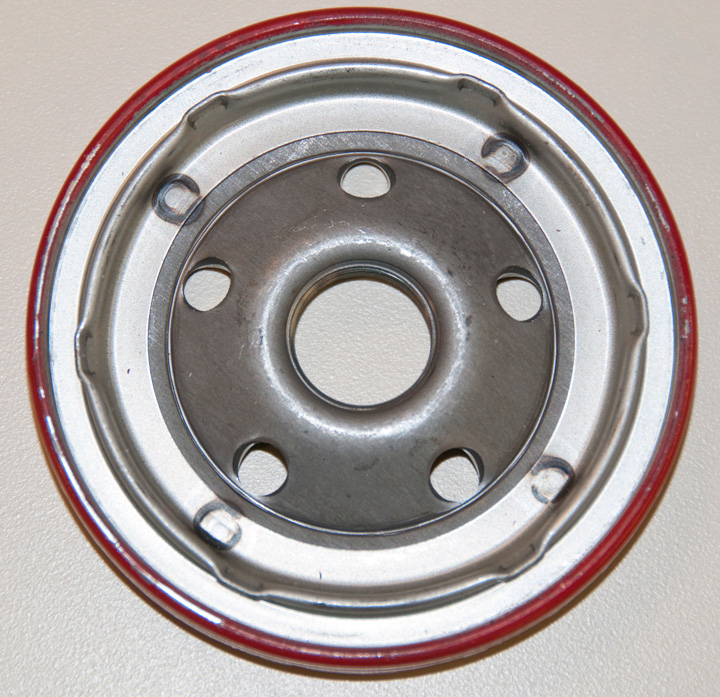

inlet

Anti-drainback Valve - Nitrile

End Cap Construction - Steel

Filter Seam Construction - Steel Band Crimped

Filtering Media Material - Cellulose

Filter Media Surface Area (sq mm) - 185,510.4

Filter Media Volume (mm cubed) - 148.408.3

Notes - High strength spring

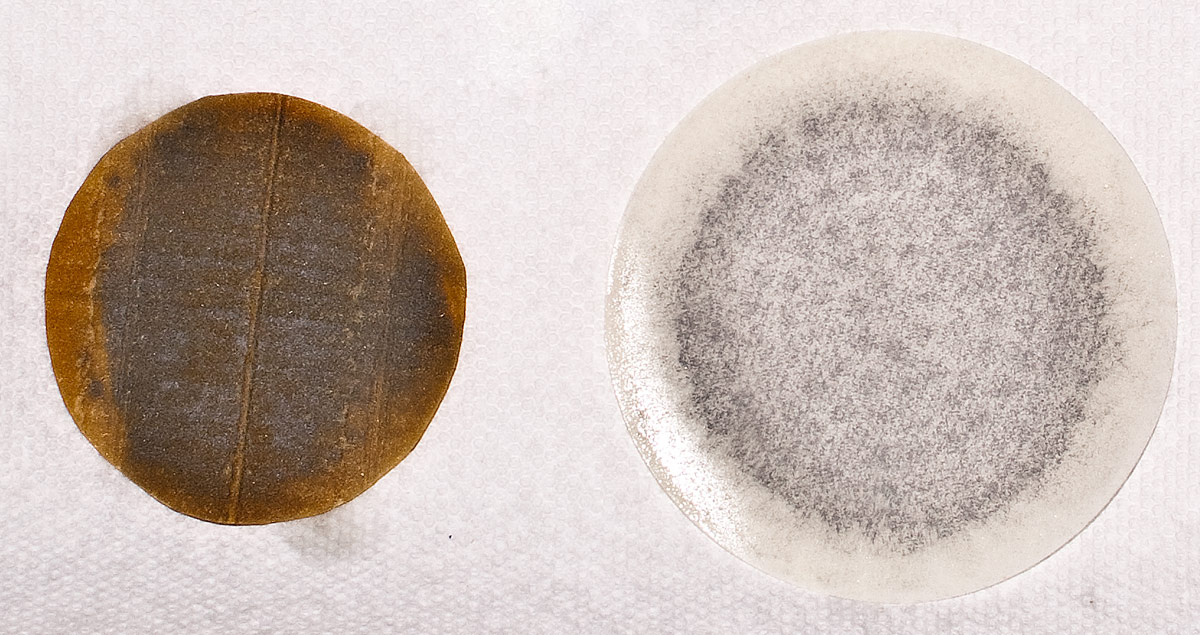

30µm filtering test image:

30 filtering test
