Carquest B4361

Share this:
Google+

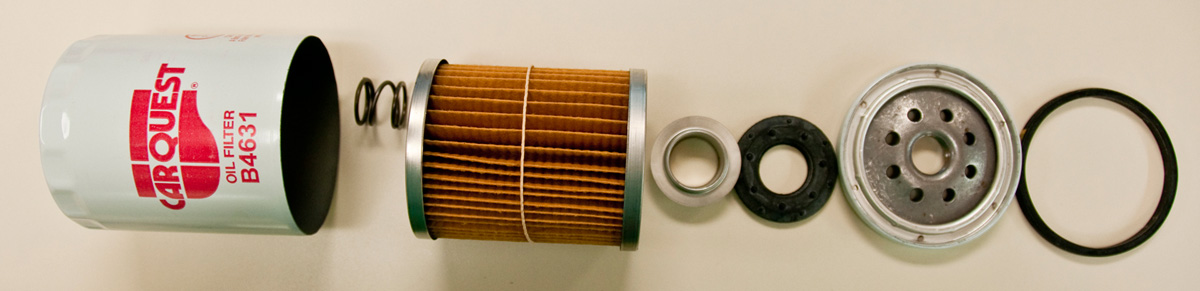

exploded

Purchase Price - $2.47

Purchased From - Filterbarn.com

Box

Total Inlet Opening Area (sq mm) - 345.44

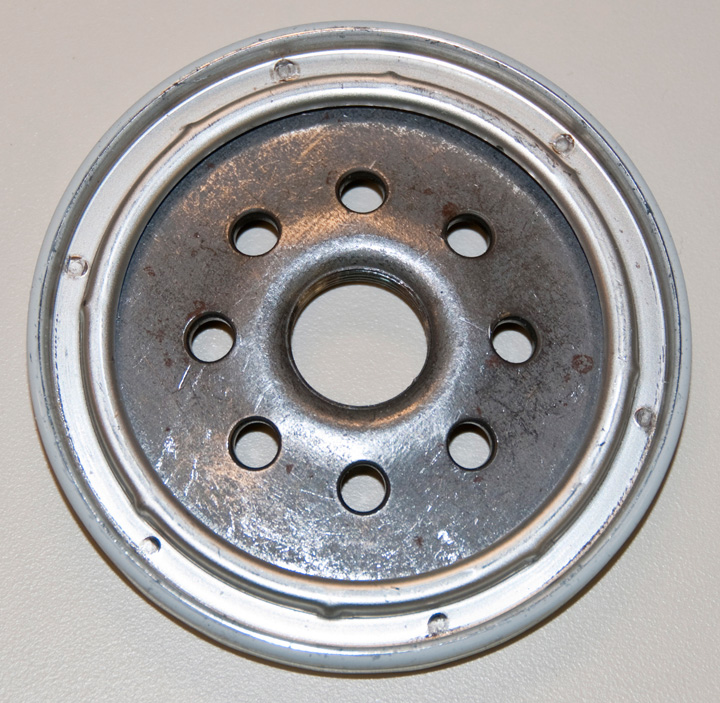

inlet

Anti-drainback Valve - Nitrile

End Cap Construction - Steel

Filter Seam Construction - Glued

Filtering Media Material - Cellulose

Filter Media Surface Area (sq mm) - 169,649.5

Filter Media Volume (mm cubed) - 96,700.2

Notes - String tied around media

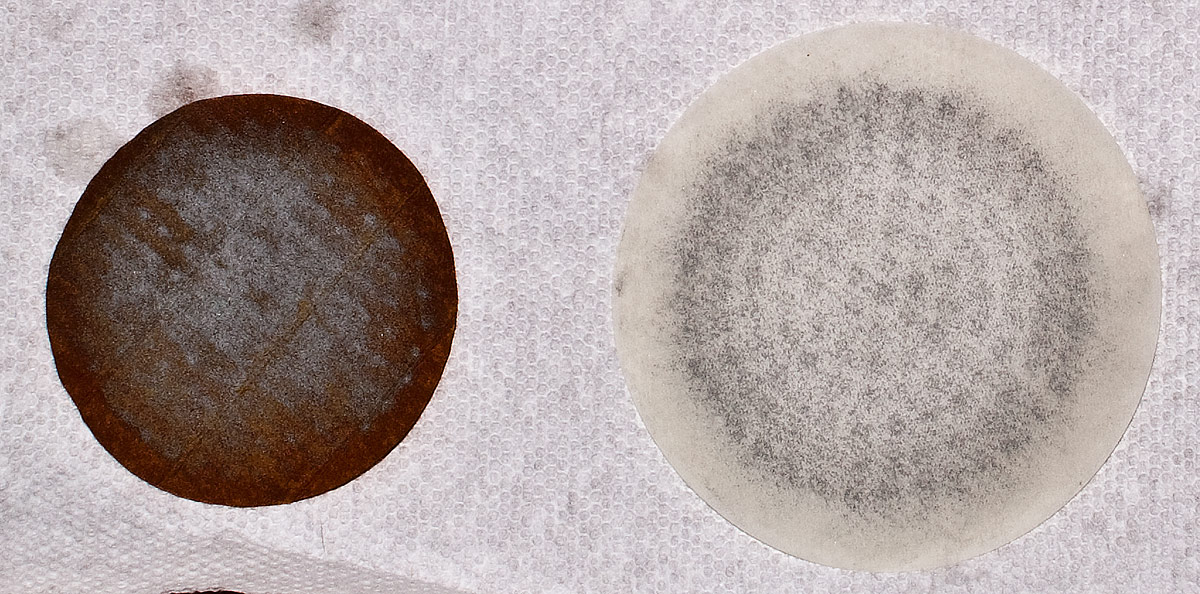

30µm filtering test image:

30um filtering test
