Fleetguard LF3679

Share this:
Google+

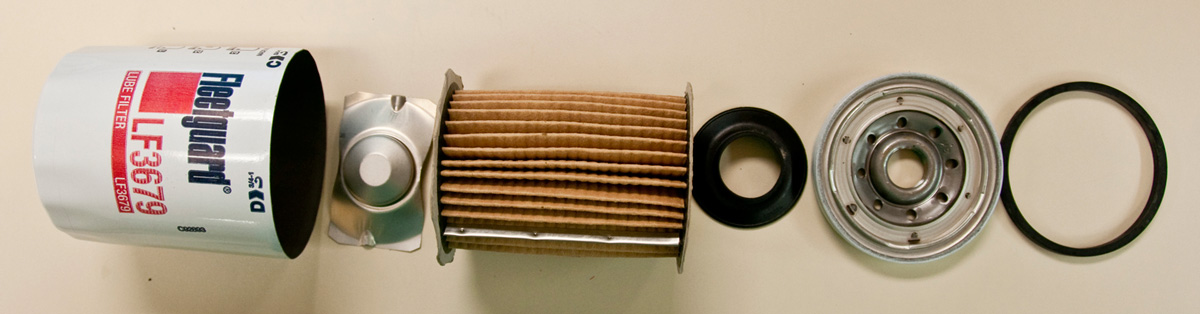

exploded

Purchase Price - $3.98

Purchased From - Filterbarn.com

Total Inlet Opening Area (sq mm) - 150.02

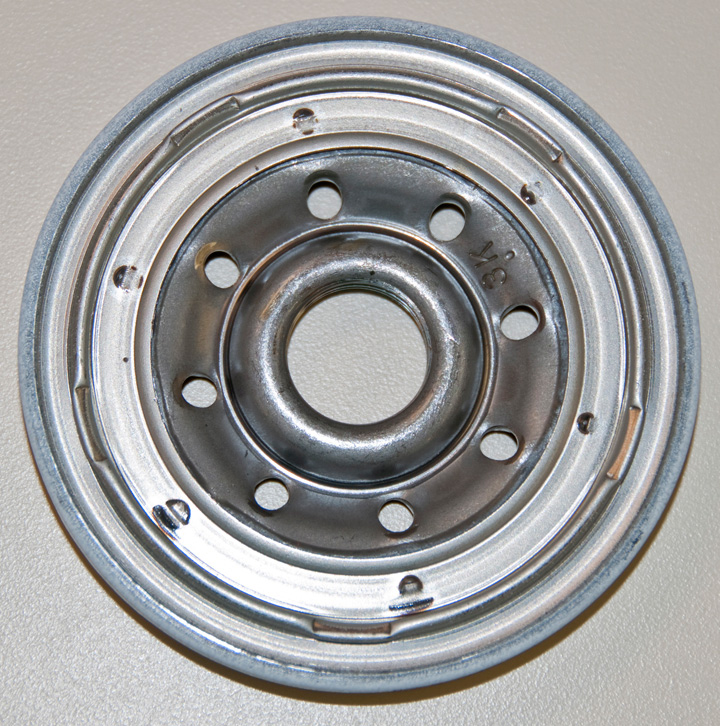

inlet

Anti-drainback Valve - Nitrile

End Cap Construction - Cardboard

Filter Seam Construction - Steel Band Crimped

Filtering Media Material - Cellulose

Filter Media Surface Area (sq mm) - 122,878.9

Filter Media Volume (mm cubed) - 88.472.8

Notes - Filter was shrinkwrapped, did not come in a box.

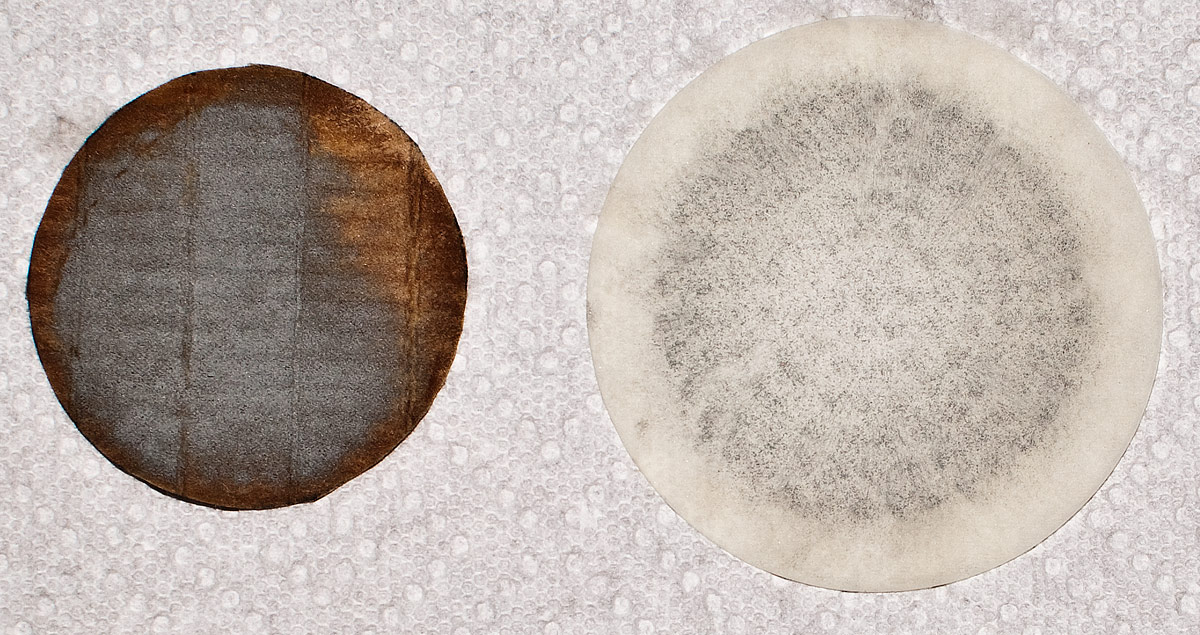

30µm filtering test image:

30umnm filtering test
