Microgard MGL9100

Share this:
Google+

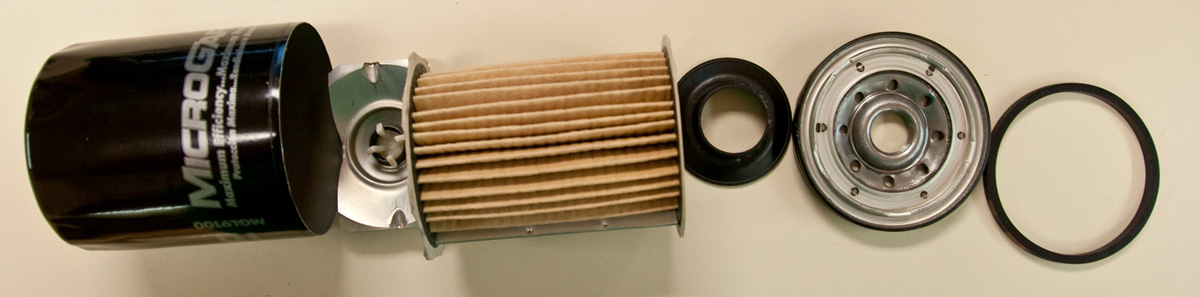

exploded

Purchase Price - $4.49

Purchased From - Checker

box

Total Inlet Opening Area (sq mm) - 158.33

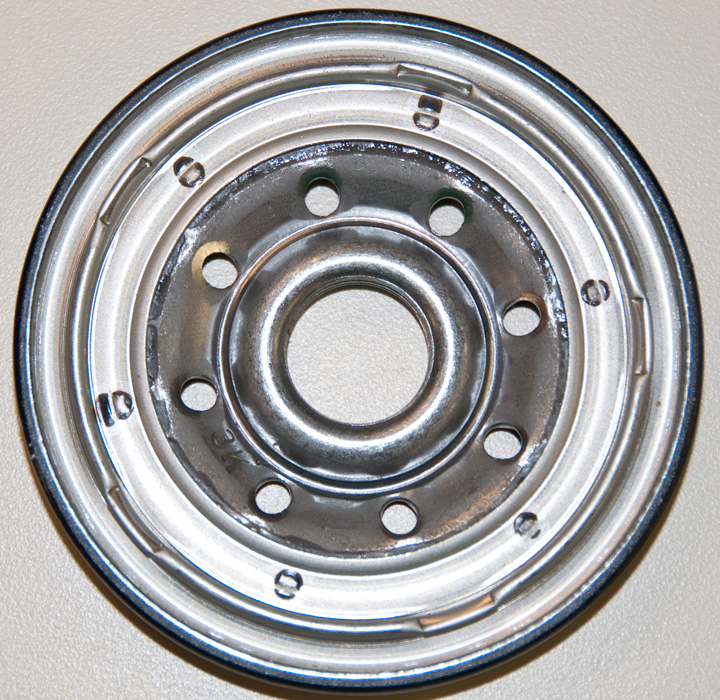

inlet

Anti-drainback Valve - Nitrile

End Cap Construction - Cardboard

Filter Seam Construction - Steel band crimped

Filtering Media Material - Cellulose

Filter Media Surface Area (sq mm) - 121,459.6

Filter Media Volume (mm cubed) - 89,880.1

Notes - none

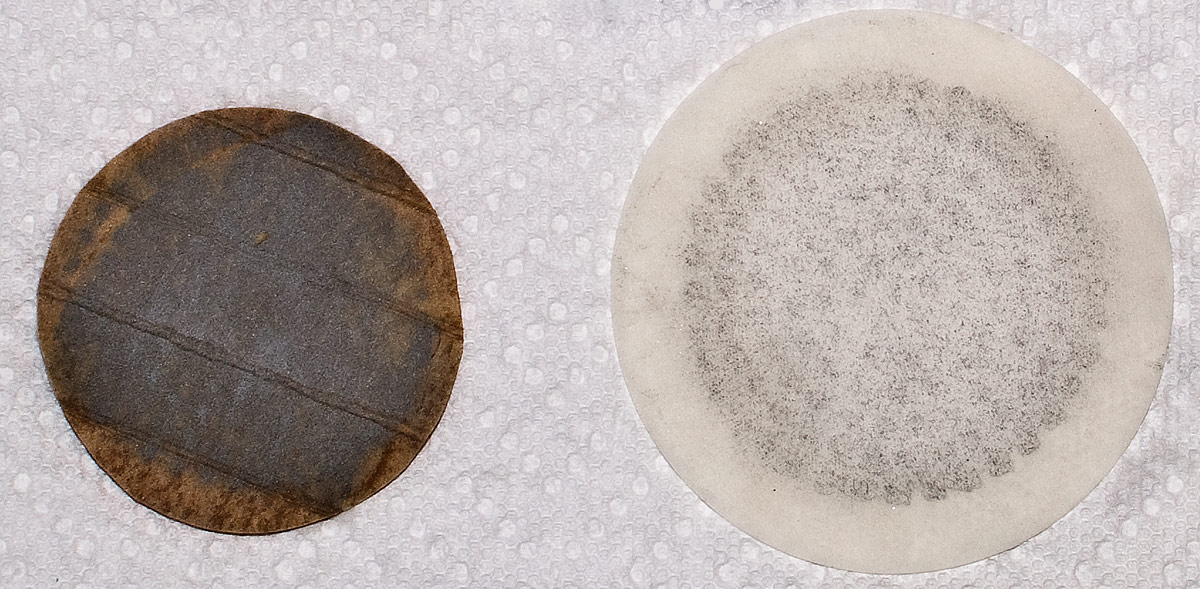

30µm filtering test image:

30um filter testing
