Fram Toughguard TG5

Share this:
Google+

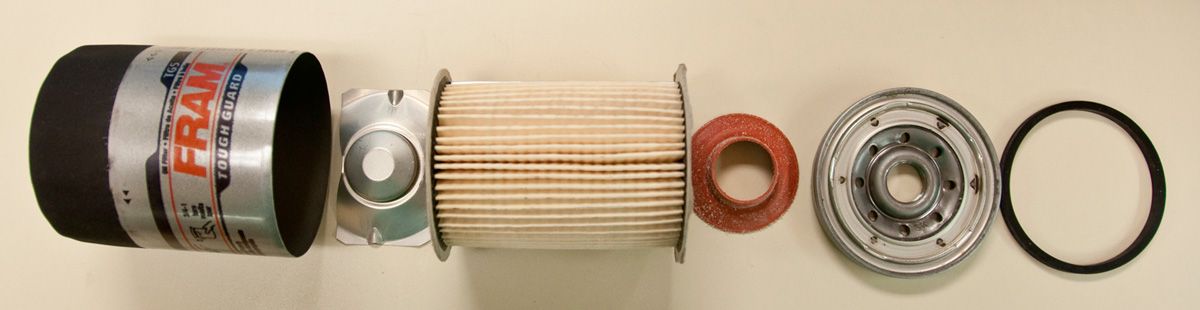

exploded

Purchase Price - $6.99

Purchased From - Autozone

Box

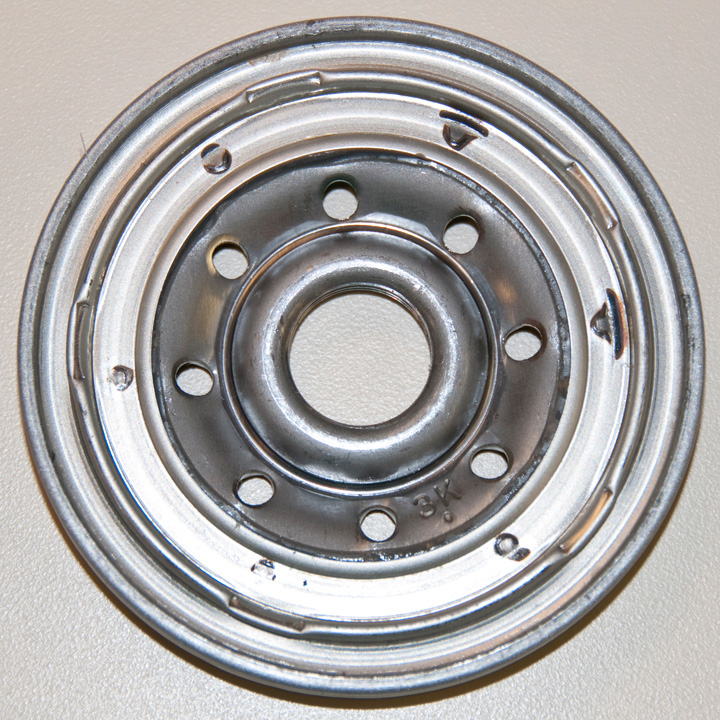

Total Inlet Opening Area (sq mm) - 155.19

inlet

Anti-drainback Valve - Silicone

End Cap Construction - Cardboard

Filter Seam Construction - Steel band crimped

Filtering Media Material - Blend

Filter Media Surface Area (sq mm) - 164,978.0

Filter Media Volume (mm cubed) - 127,033.0

Notes - Anti-drainback valve was covered with a white fuzz upon opening filter, bottom half of can has grip paint on it

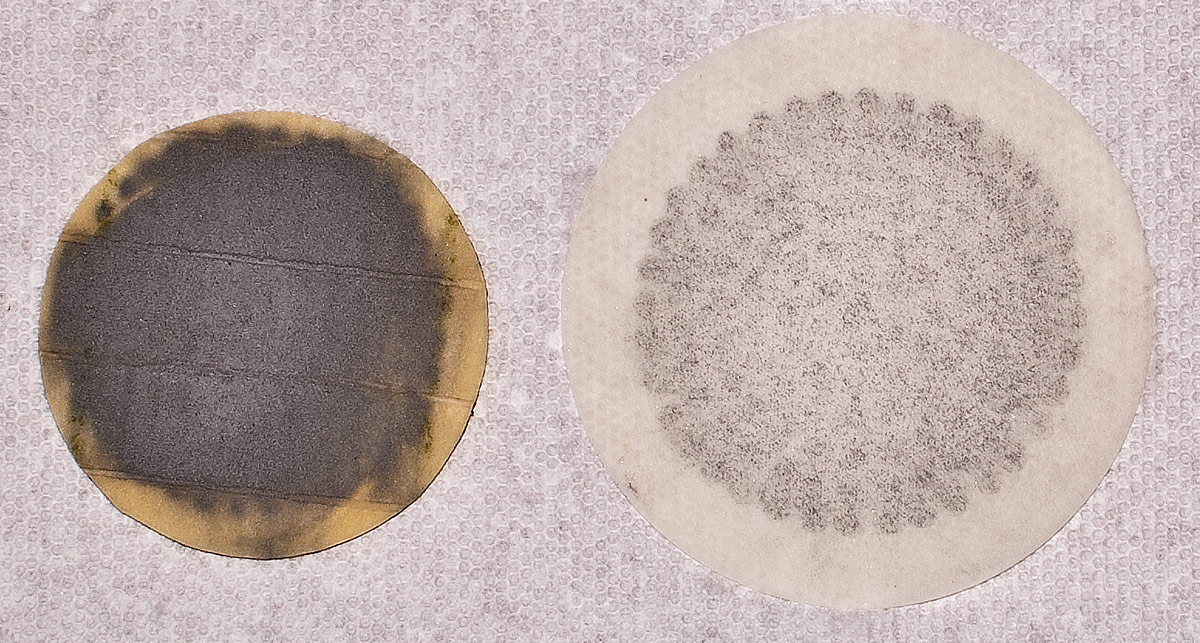

30µm filtering test image:

30um filtering test
