Fram Xtended Guard XG5

Share this:
Google+

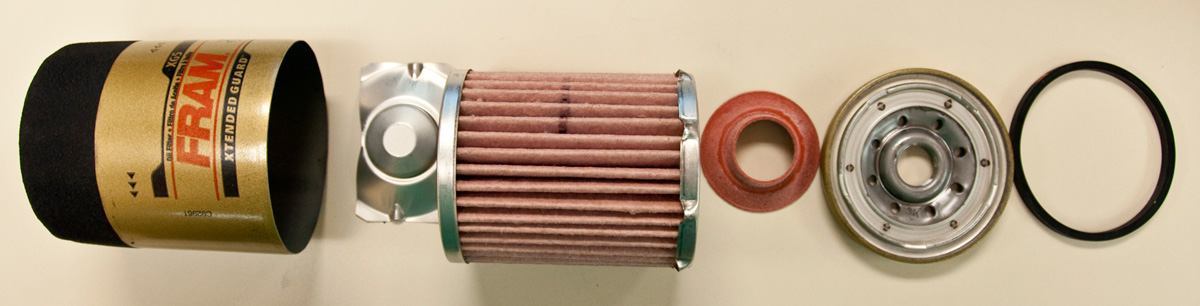

Fram XG5 exploded view

Purchase Price - $7.95

Purchased From - summitracing.com

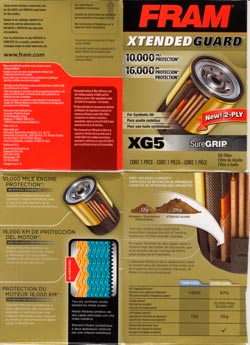

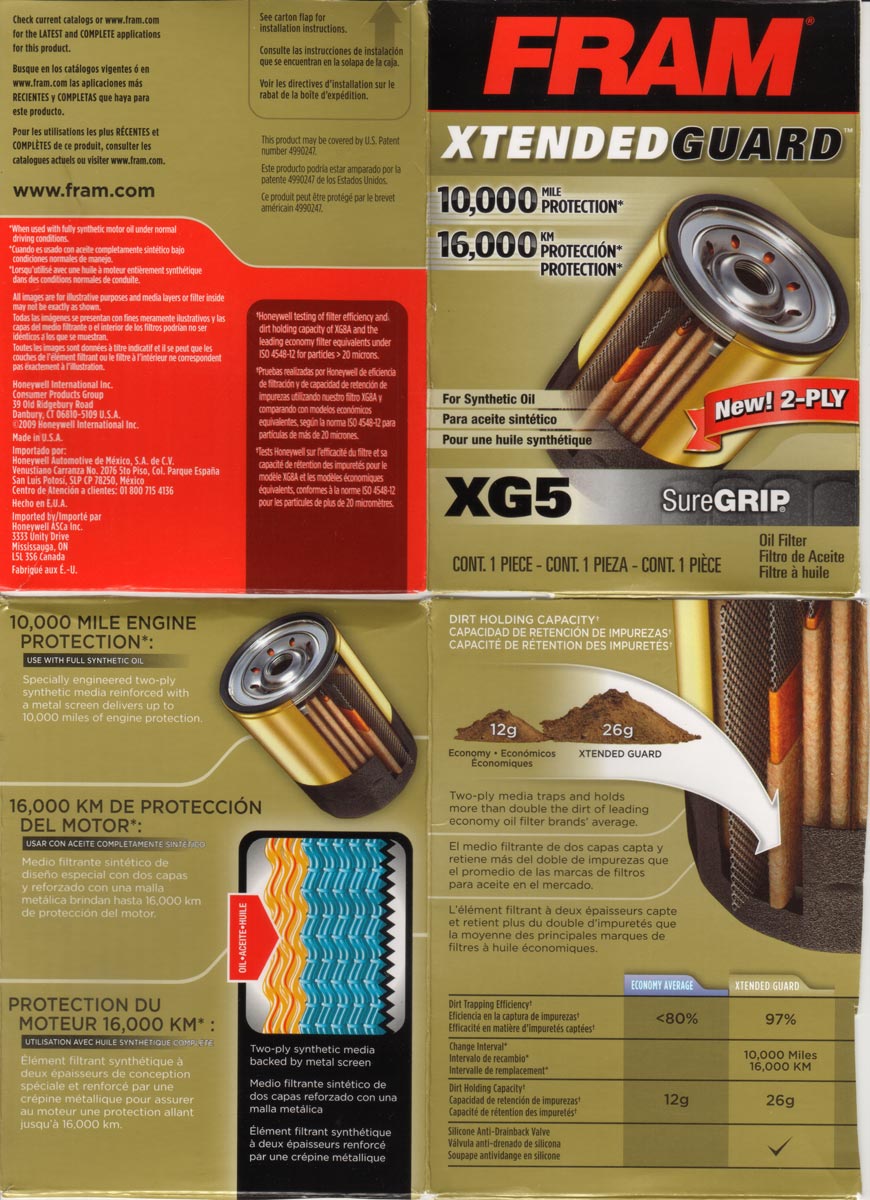

Box

Total Inlet Opening Area (sq mm) - 155.55

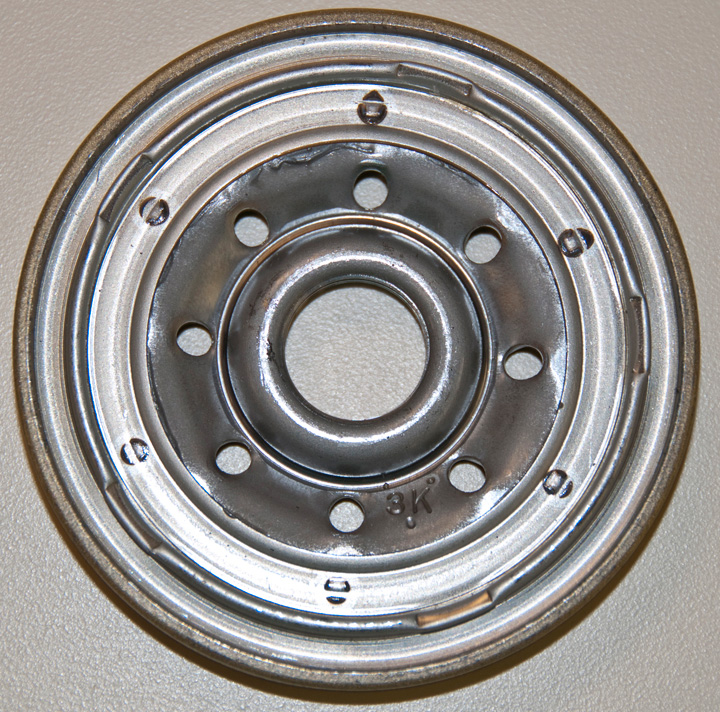

inlet

Anti-drainback Valve - Silicone

End Cap Construction - Steel

Filter Seam Construction - Steel band crimped

Filtering Media Material - Synthetic

Filter Media Surface Area (sq mm) - 137,846.6

Filter Media Volume (mm cubed) - 151,631.2

Notes - Anti-drainback valve was covered with a white fuzz upon opening filter, bottom half of can has grip paint on it, steel mesh backed media

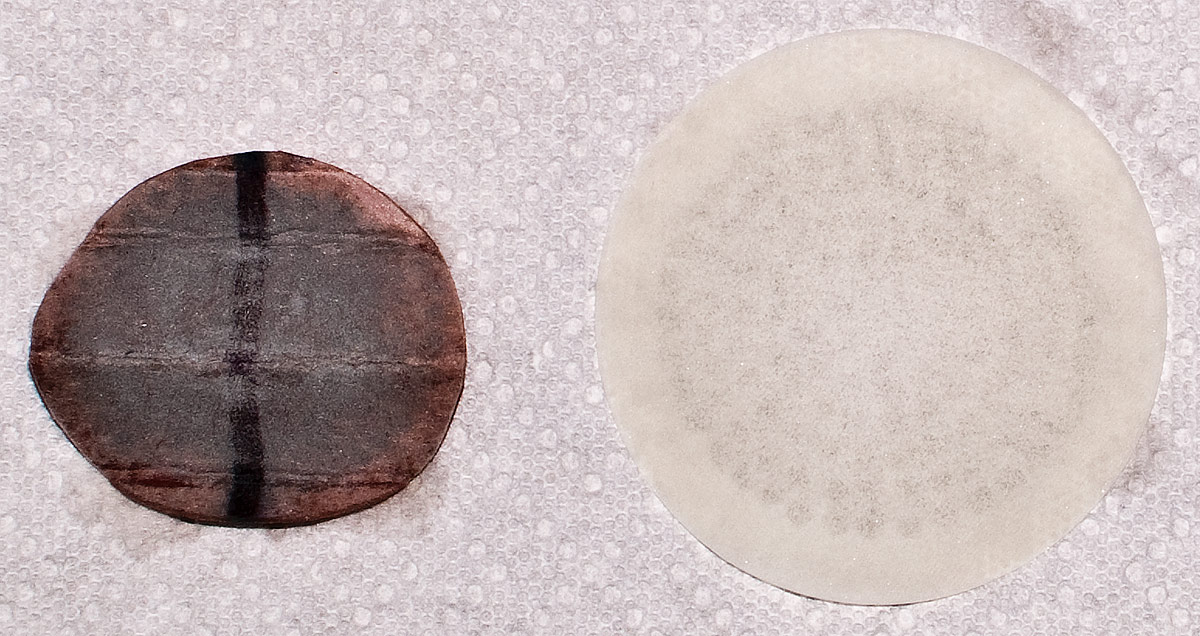

30µm filtering test image:

30um filter testing
