Fram Extraguard PH5

Share this:
Google+

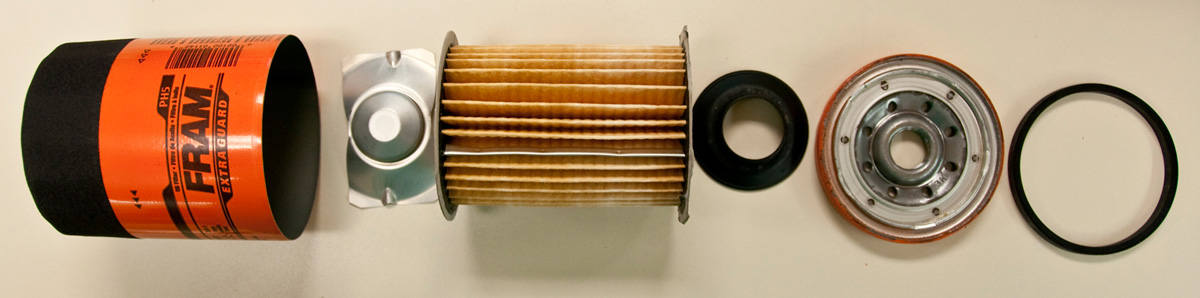

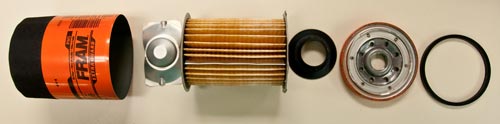

exploded

Purchase Price - $3.99

Purchased From - Autozone

Box

Total Inlet Opening Area (sq mm) - 148.99

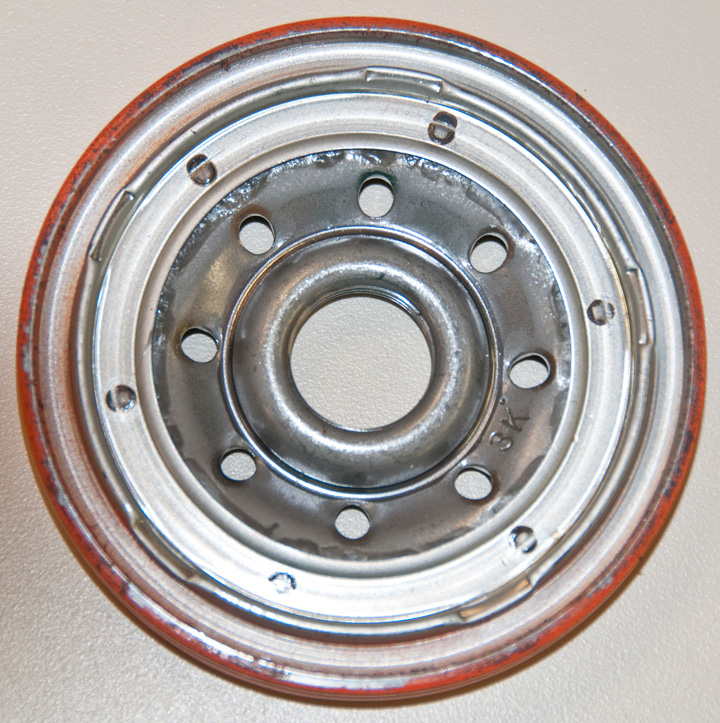

inlet

Anti-drainback Valve - Nitrile

End Cap Construction - Cardboard

Filter Seam Construction - Steel Band Crimped

Filtering Media Material - Cellulose

Filter Media Surface Area (sq mm) - 130,930.4

Filter Media Volume (mm cubed) - 111,290.8

Notes - Lower half of can has grip paint on it.

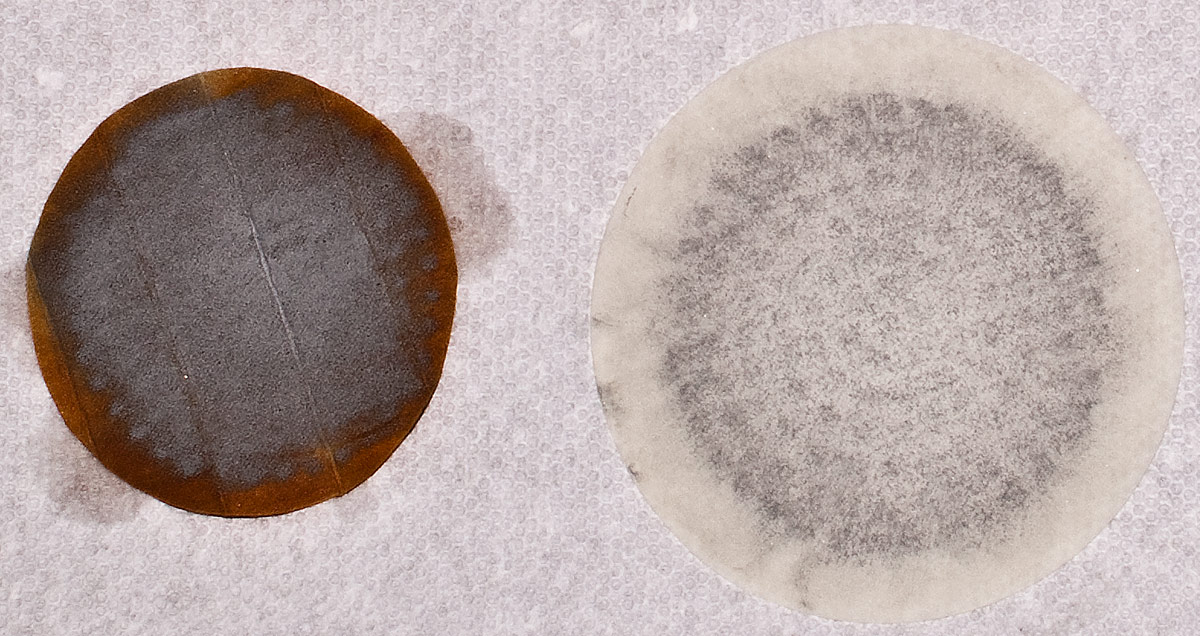

30µm filtering test image:

30um filtering test
