Royal Purple 30-1218

Share this:
Google+

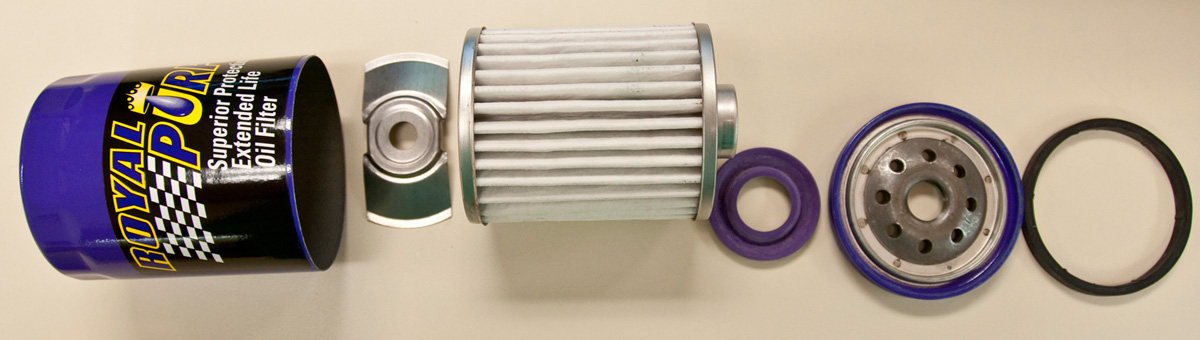

exploded

Purchase Price - $14.99

Purchased From - Pepboys

box

Total Inlet Opening Area (sq mm) - 298.28

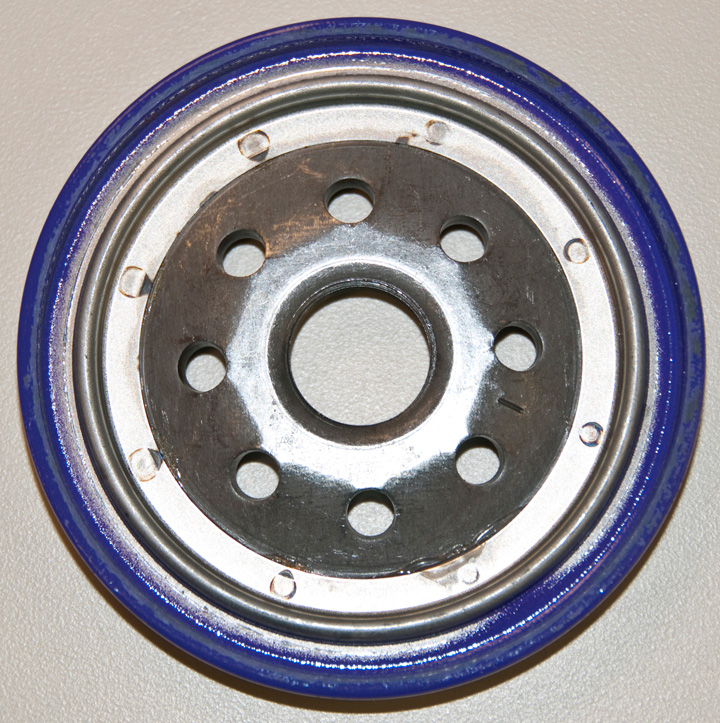

inlet

Anti-drainback Valve - Silicone

End Cap Construction - Steel

Filter Seam Construction - Glued

Filtering Media Material - Synthetic

Filter Media Surface Area (sq mm) - 130,552.1

Filter Media Volume (mm cubed) - 70,498.1

Notes - Wire backed media, one of the best performing filtering media.

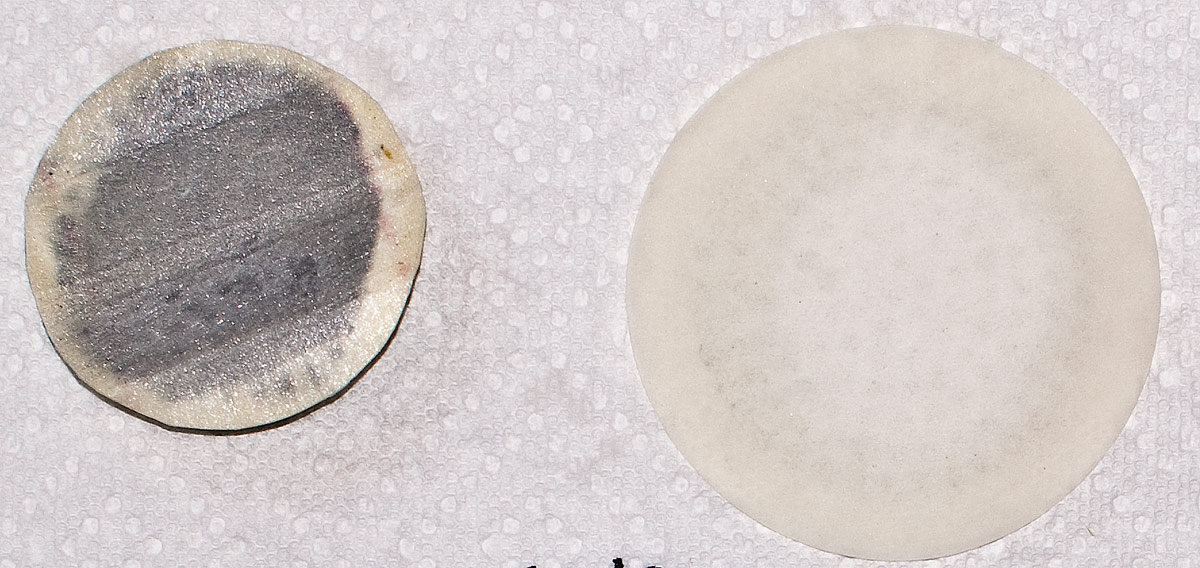

30µm filtering test image:

30um filtering test

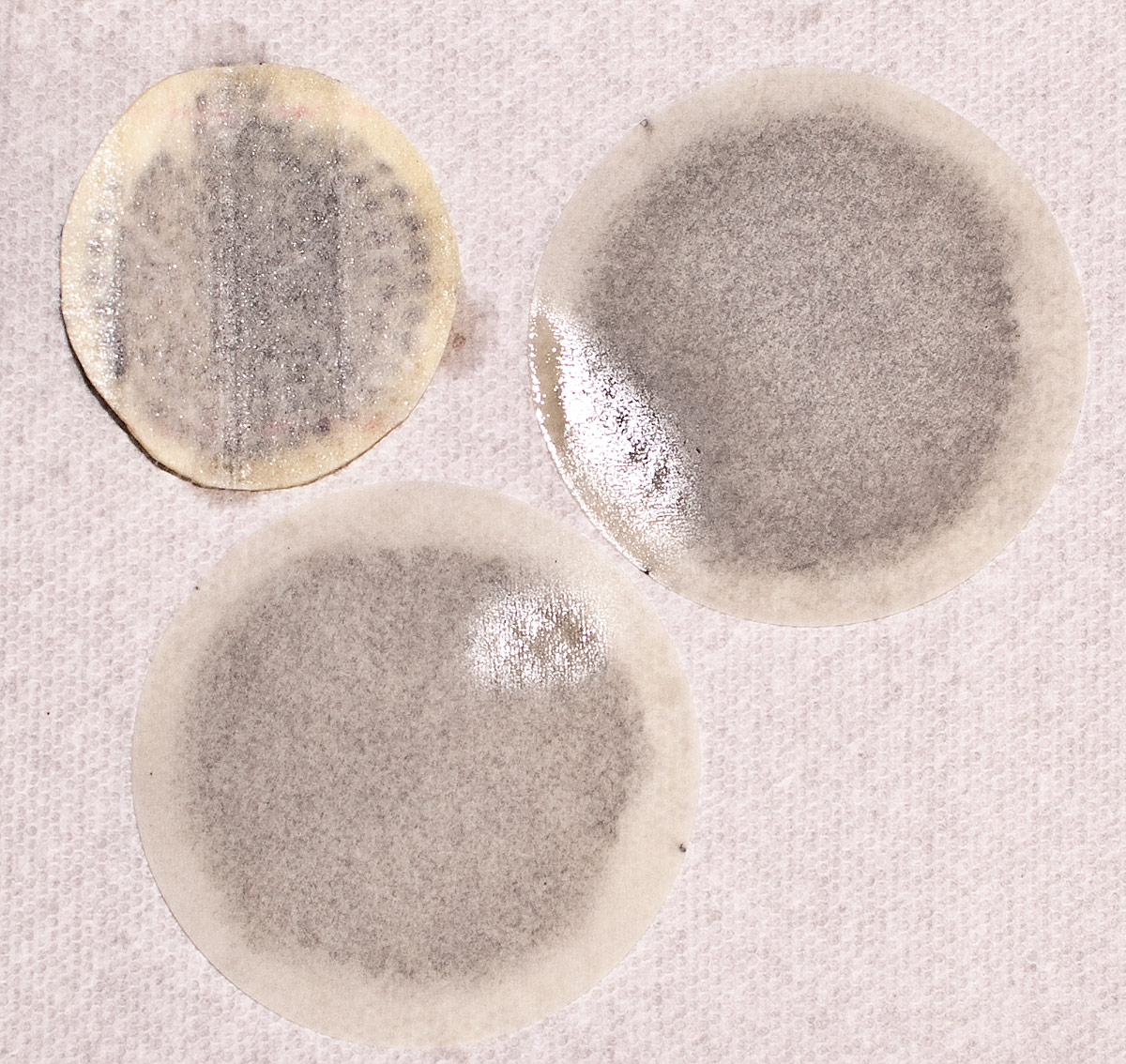

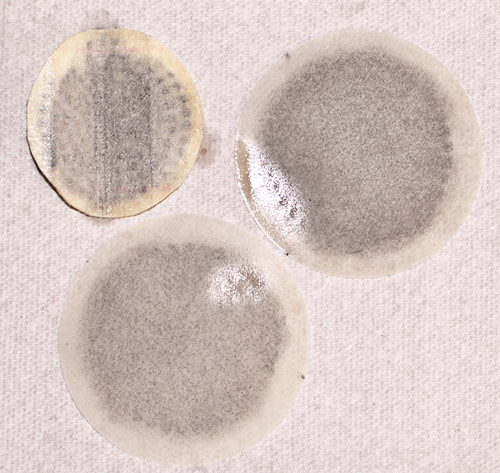

5µm filtering test image:

5um filtering test

To comment, discuss, or ask questions about this article, please click here to visit our forum.
